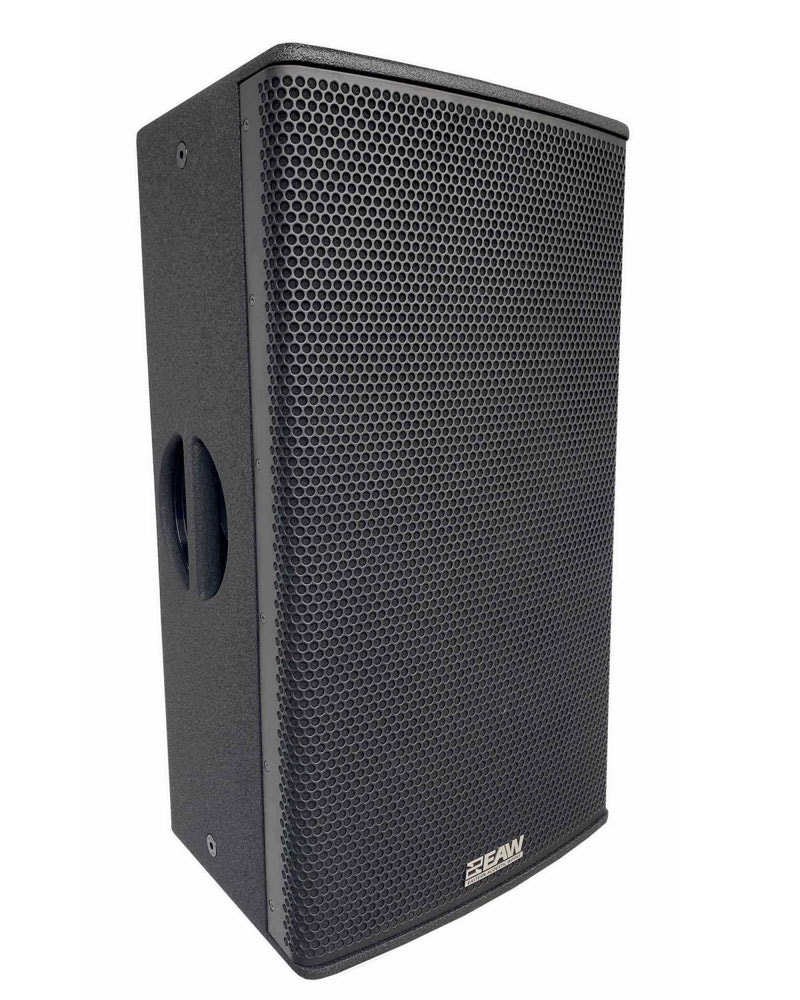

EAW RS121

The RS Series delivers EAW signature performance in a portable and lightweight wooden enclosure. Each enclosure in the series is first designed around the latest breed of touring grade HF and LF transducers. The intelligent features of the series include EAW Focusing which provides unmatched musical clarity and tonal accuracy. Pattern control of the RS Series is further enhanced by the unique, constant directivity HF horn; a design theory first proven in our legendary MK Series, a series born from the audio performance needs of stadiums throughout the world.

The lightweight and durable wooden enclosure has been meticulously designed to eliminate resonance and houses onboard bi-amplified electronics (1500W) featuring signature EAW DSP including Focusing and DynO. Our Resolution software platform is a powerful and easy-to-use simulation software that accurately predicts the performance of one or multiple RS Series enclosures within a venue or performance space.

Applications

• Houses of Worship
• Theatres, Auditoria and Performing Arts Centers
• Live Music Clubs
• Corporate AV Houses
• Live Production/Regional Rental Houses
• Dry Hire

Specifications

• Touring grade transducers
• EAW Focusing for unmatched clarity and accuracy
• Rotatable MK inspired horn for EAW signature pattern control
• Lightweight and durable wooden enclosure with M10 threaded suspension points
• Frequency Response: 55 Hz – 20 kHz
• Max SPL: 135dB
• Operating Mode: Bi-Amp LF, HF
• Subsystem: 12 in Cone, 2.5 in Voice Coil 1.4 in Voice Coil Compression Driver, 1 in Exit
• Nominal Beamwidth: 90° Horizontal 60° Vertical
• Power Handling: 1500W
• Connections: IEC Power Connector, XLR Input/Thru
• Dimensions: Height: 65 cm - Width: 37cm  - Depth: 38 cm
• Weight: 19kg
